| Brand Name : | itec |
| Certification : | EMV LEVEL 1 FCC CE |
| Model Number : | iTec-50633P16 |
| Price : | 42 |
| Delivery Time : | 3-7 |
| Payment Terms : | paypal , T/T , West Union |
| Supply Ability : | 1 million |

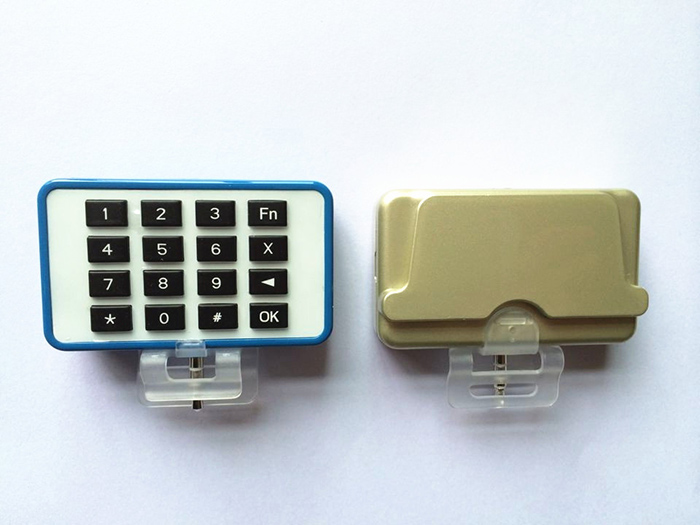

Manual-insertion type reader
ISO7811 & ISO7816 compliance
EMV L1 certificated
16-key pad made of high quality & long life silica gel
Support DES/3DES/AES/DUKPT encryption
Audio-jack interface
No external power cable needed
Micro-USB socket for rechargeable Li-Ion battery
Dual-color LED
Firmware upgrade by ISP tool and Micro-USB
Items | Contents | |||
Magnetic Card ISO 7811 | Track | Track 1 | Track 2 | Track 3 |
Recording density | 210 BPI | 75BPI | 210 BPI | |
Capacity | 79 characters (7 bit code) | 40 characters (5 bit code) | 107 characters (5 bit code) | |
Start / End Code | % / ? | ; / ? | ; / ? | |
Smart Card | ISO 7816 T=0,T=1 (R/W) | |||
PIN Pad & Encryption | 16 Key( 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #, [Enter], [Cancel], [Backspace], [Function] ) Transmit PIN to Phone with encryption option: None / DES / 3DES / AES / DUKPT | |||
Life time of ICC Acceptor | Approx 200,000 times of insertion | |||
Power Input | Operating 3.3V DC, MAX. 13mA and less then 0.1mA when standby (Work in 3V cards) | |||
Rechargeable Li-Ion Battery | 3.7V/300mAh, 2 hours per charge, DetectEnergy() API; Support 1,500 times of usage if 30 seconds per transaction. | |||
Interface | 3.5mm audio jack: TRRS 4 signal contacts- left earphone, right earphone, ground and microphone; Micro-USB | |||
Operating System & SDK support | iOS(Audio), Android(Audio), Windows(Micro-USB) | |||
Dimension | 67 x 40 x 18.5 mm | |||
|
|
